PC BOARD HARDWARE
We offer an assortment of standard blank and cutout computer brackets, PCB support brackets, card edge ejectors, guides, and terminals to provide the right solution

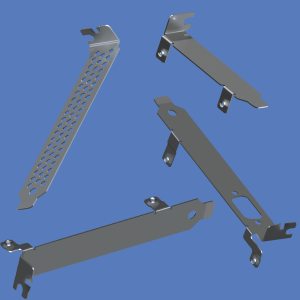

PC Card Computer Brackets
PC Card Computer Brackets.
For EISA/ISA, PCI and Security Applications.
Designed To Fit All PC Computer Chassis.
These printed circuit card brackets have been designed to fit all PC computers and are available with
a variety of holes and cutouts to connect to any peripheral. Manufactured using .032 [0.81] thick Steel,
these premium quality brackets have a Nickel finish for appearance and durability.
If any of the various standard brackets do not suit your specific needs, Keystone’s custom manufacturing
capabilities and cost effective tooling assure fabrication to exact requirements with quick turnaround.
As an aid, a custom bracket worksheet is provided which designers may use to indicate specific cut-outs
and locations. Simply send back the worksheet to Keystone for a prompt response and quotation.
View Cutout options for Connectors, Jacks and Sockets

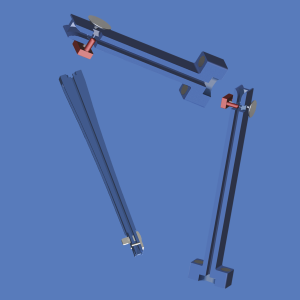

Vertical PC Board Guides
Vertical PC Board Guides.
Press Fit mounting.
Vertical board guides provide for a quick and easy assembly of circuit boards.
Sturdy design assures boards stay square. These guards can be mounted to chassis or directly to a mother
board. Mounting holes have brass threaded inserts to assure secure mounting of guide. After bracket is installed,
boards are quickly locked into place or released for repair or upgrades.
Locking pins at the top of the bracket can be set/released using finger pressure, no tools are required.
• Brass threaded inserts assure sturdy connection to chassis or mother board.
• Available for circuit boards 1.970” to 6.300” tall.
• Locking pin keeps circuit board locked into place.
• M3 mounting screws available.
• All brackets use same footprint, no redesign of mounting holes required if changing bracket height.

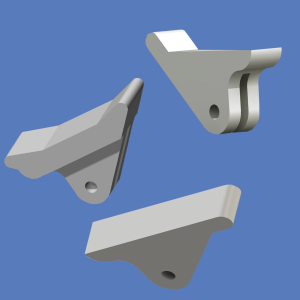

Lever Action PC Card Ejectors
Lever Action PC Card Ejectors.
Cards ejectors offer a simple and reliable way of installing and ejecting circuit boards.
Card ejectors reduce the stress on board connectors by improper removal of board.
Ejectors also protect components on boards from damage during removal or installation.
They are supplied with stainless steel pin to assure quick assembly of ejector to card.
• Designed for .062 (1.57) PC cards.
• Supplied complete with stainless steel spring pin.
• Material: Nylon 6/6, UL Rated 94 V-0.
