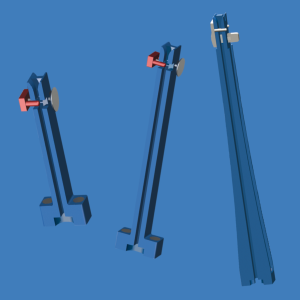

Vertical PC Board Guides.
Brass threaded inserts assure sturdy connection to chassis
Available for boards from 50mm to 120mm
Locking pin keeps board locked into place
Supplied with 2 screws, 2 washers and 2 lock washers
Operating temperature : -20°C to 60°C
Vertical board guides provide for a quick and easy assembly of boards.
Mounting holes have brass threaded inserts to assure secure mounting of guide.
After bracket is installed, board sare quickly locked into place or released for repair or upgrades.
looking pins at the top of the brackets can be set/released using finger pressure – no tools requiered.

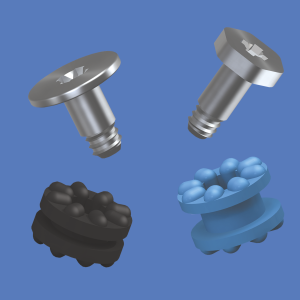

Anti-Vibration Grommets.
For Mechanical Dampening, Noise Supression, Electrical Insulation.
Engineered to isolate sensitive instrumentation from unpredictable vibration and shock,
these new devices have “fingers” designed to flex as needed to dampen unwanted noise or
vibration. Supplied with specially designed shoulder screws these anti-vibration grommets
provide the correct spacing while allowing the screw to be fully tightened down.
Designed to accommodate panels from .031″ to .125″ thick., the insulators are manufactured
from durable EPDM rubber in black or blue color. Mating custom fitted shoulder screw is
made of nickel plated steel in 6-32 and M3 threads. Anti-Vibration Grommets are supplied
as unassembled sets (Insulator and Screw).
