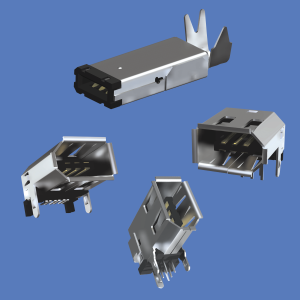

IEEE 1394 “FireWire” Plugs & Sockets.
Horizontal and Vertical Mounting Styles.
Available in Surface Mount and Thru-Hole Configurations.
The IEEE 1394 “FireWire” bus is a Hi-Speed digital connection.
It can be used to connect most electronic devices together over a single wire.
This design is capable of becoming the universal connection between any device.
FEATURES
Tin Lead Plated solder tails for excellent solderability Gold Plated contacts for low contact resistance and excellent reliability.
Plug:
Modular design allows easy and fast assembly of components
Integrated strain relief – crimps to wire insulation
Socket:
Surface Mount or Thru-Hole Mount Technology for electrical connections
Snap-In PC tails hold connector in position for wave soldering
DESIGN ADVANTAGES
• Superfast Data Transfer: Current speeds of 100Mbps, 200Mbps and 400Mbps, and roadmapped to 1GB per second (Gbps).
• Daisy Chaining: Up to 63 devices, each one acts as an active repeater on the bus, with a maximum of 16 repeats.
• Port Expansion: Alleviates restriction of limited COM Ports and available IRQ’s.
• Wide Bandwidth: Digital interface designed for high speed applications for PC peripherals, consumer electronics and communications. Delivers services like Digital Video and Data without analog conversion.
• Simple Connections: True Plug and Play – no jumpers, DIP Switches or IRQ’s to set.
• Hot Swapping: Allows peripherals to be connected or disconnected without turning off computer.
• Highly Versatile Bus: One bus can handle a variety of devices operating at different speed classes for true backwards compatibility.
• Self-configuring: Operates unsupervised and in asynchronous or isochronous data streams to communicate real time data transport on one bus.
• Standard Digital Interface: Allows consumer electronics and computer devices to communicate together on one interface.

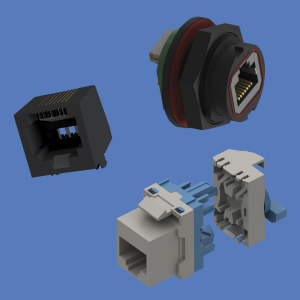

Modular keystone (RJ45 8P8C) Jacks
Horizontal (Right-angle) Entry PCB Mount.
Vertical (Top-angle) Entry PCB Mount.
Horizontal (Right-angle) Entry Panel Mount.
Waterproof (IP68 rated) Jacks & Plugs.
These keystone modular jacks provide a reliable connection to networks. Will mate with any plug that conform to FCC Part 68, Subpart F. Available as a surface mount, thru hole mount or panel mount. Right Angle or Top Angle plug entry and waterproof. Other options are available, do not hesitate to contact us for available options.
Characteristics:
• Fully compliant to IEEE & IEC standards
• Durability: 500 cycles min.
• Operating Temperature: -40ºC. +85ºC.
• Gold plated contacts (6µ”), low resistance: 40m? max
• Voltage rating: 125 VAC RMS • 100Base-T (Fast Ethernet)
Construction features include:
• Snap-in stud to hold jack in position for wave soldering.
• Tin Plated solder tails for excellent solderability.
• Gold Plated contact areas assure low contact resistance and high reliability.

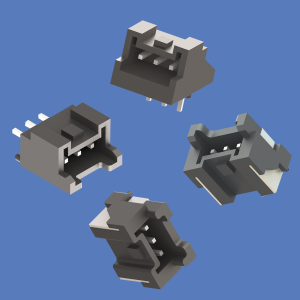

PC Battery Holder Connector Jacks.
Wire to Board PC Connector Jacks.
Available in Surface Mount or Thru-Hole Mount.
Vertical or Horizontal entry.
• Jacks have keyed entry to prevent improper installation.
• Quick Release locking mechanism for easy assembly / dissasembly.
• Locking mechanism maintains a secure connection between battery pack and circuit board.
• For use with Battery Holders with PC Connector.
Product Spoecifications:
• Housing: Nylon 6/6-V-0.
• Current Rating: 3AMPs.
• Voltage Rating: 250 VAC.
• Temperature Range: -25°C to +85°C.
• Contact Resistance: 20 mohm Max.
• Insulation Resistance: 1000 MOhm Min.
• Mounting: Solder Profile.

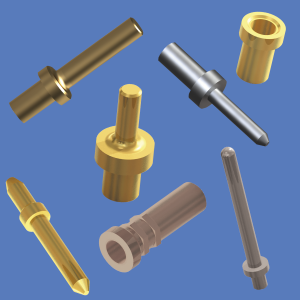

PCB Micro Pins & Jacks.
Swage, Solder, Press-Fit and Surface Mountable Styles.
Keystone offers an expanded line of precision engineered and manufactured standard Micro Pins and mating Micro Jacks
in a variety of mounting configurations to suit most applications.
Micro Pins.
• Micro pins are available in .017 (.43) to .080 (2.03) diameters
• Space saving design for high density packaging Ideal for mating with our standard line of micro jacks
• Available for press-fit, swage or solder mounting
• Specifications:
– Material: Brass, ASTM-B16
– Plating: Gold or Tin
Micro Jacks.
• Beryllium Copper multi-spring contact maintains retention after multiple insertions
• Ideal for mounting transistors, resistors, diodes, IC’s and similar miniature components
• Specifications:
– Body: Brass, ASTM-B16
– Spring: Beryllium Copper (QQ-C-533)
– Plating: Gold or Tin
Custom micro pins & jacks manufactured to your specifications.
Other platings available upon request.

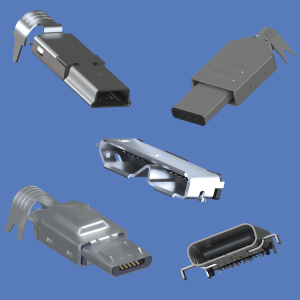

Universal Serial Bus Plugs & Sockets.
Type A, B and C.
USB 2.0, USB 3.0, USB 3.1, Mini-USB, Micro-USB.
These Universal Serial Bus (USB) Plugs and Sockets may replace all other existing ports and connectors,
which alleviates restrictions of limited COM ports and available IRQ’s.
They enable users to daisy chain up to 127 devices. Data transfer rates for USB 3.0 are up to 480 Gbps.
USB 3.0 sockets are backwards compatible with USB 2.0 plugs.
Construction features include:
• Snap-in PC solder tails to hold connectors in position for wave soldering.
• Tin Plated solder tails for excellent solderability.
• Gold Plated contact areas assure low contact resistance and high reliability.
