Keystone Europe MEA+India - Coiled Battery Contact

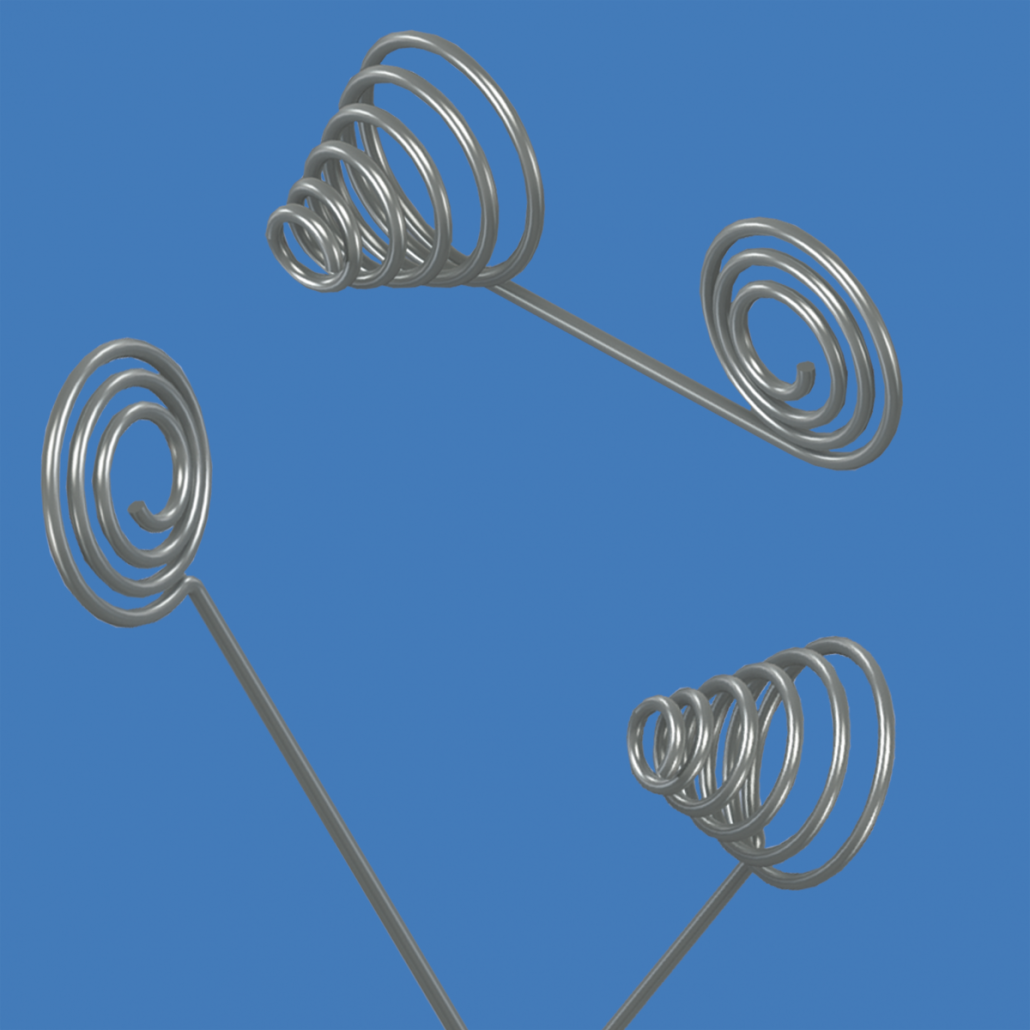

Coiled PC/Case Mount Battery Contacts.

To support the increasing demands for higher energy, lower weight cylindrical battery usage, Keystone Electronics has introduced our latest coil spring contacts designed to slide-into molded cases with no wire lead, direct placement onto a PCB.

Engineered with a contact design that adjusts to variations in battery length, these contacts assure low contact resistance and dependable connectivity.

These contacts also offer the convenience of being drop in replacements for standard leaf spring contacts. Contacts can accommodate cylindrical batteries styles including A, AA, AAA and, CR2 cells virtually eliminating the need to specify brand and style.

Manufactured from .61mm Steel Wire with Nickel Plating for superior performance in today’s high tech devices.

P/N Polarity Suitable for
242 Positive A, AA & CR2
243 Negative A, AA & CR2
179 Positive AAA, AAAA, N, A23 & A27
180 Negative AAA, AAAA, N, A23 & A27
244 Dual AA & CR2
181 Dual AAA

These products are available thru Ramses – Keystone Europe MEA+India HQ. distributors network.
